Default Project Reborn......
Just bought a 1/10 nitro truck that will require a build from the ground up and since I'm new to nitro's I figured "hell this will be interesting" "let's document everything to see how it fairs out." Imma try to do a from the box, when I receive it, to it's first run on a track...... Stay tuned! Pics to come.
Reply With Quote
  #2
Old 03-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default
These are the pics of it on ebay!

Top view


Bottom view


Box with almost everything!


Box arrived 1 July 2011


Open the box to find out what ill be working with...


Top view of it loosely put together, just tryin to get an idea of where everything went, not bad for my first time putting together a nitro with no instructions.


Motor siting unbolted in...


Side view


I was trying to find out what this was but I eventually figured it out


Self explanatory


Top view of it put together and bolted down


Picture of the piece of crap servo - SMARTECH


RIMS beat to crap also tires are on the wrong rims. Doesn't matter imma probably get new rims and tires once i get this thing running


Back side of rim


It should look mean when I get a body for it


So I tried to get power just to see if the servos worked and I got nothing, so I investigated and discovered this....



So I fixed the problem with my awesome wire skills and now I have power, but the servos that came with it are completely trashed..


The battery wire going into the receiver was poorly fixed that will be next to fix...


I also broke this part so im going to have to temp fix it until I can locate parts


I've got a long list of parts that im going to try to locate and i also need to find 2 servos.... until then stay tuned :tire:
Reply With Quote
  #3
Old 03-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default
BEFORE


AFTER


BEFORE


AFTER
Reply With Quote
  #4
Old 03-07-2011
Martijn's Avatar
Martijn Martijn is offline
Member

Join Date: Aug 2010
Location: Belgium
Posts: 298
Default
Nice truck
Realy want to see it running
Reply With Quote
  #5
Old 03-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default
Quote:
Originally Posted by Martijn View Post
Nice truck
Realy want to see it running
me to i need to find a pull starter, air filter, and a couple servos then it might be fully ready
Reply With Quote
  #6
Old 03-07-2011
i4n's Avatar
i4n i4n is offline
Senior Member

Join Date: Jan 2008
Location: Deal, Kent
Posts: 708
Default
You've got the tyres on the wrong way round, the 'ribbed' ones should be on the front.
__________________
Dragon Paints
Reply With Quote
  #7
Old 03-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default
Quote:
Originally Posted by i4n View Post
You've got the tyres on the wrong way round, the 'ribbed' ones should be on the front.
lol yea that is how I received them the guy before me must have put them on like that but I don't think it really matters because of how bald they are lol!
Reply With Quote
  #8
Old 03-07-2011
Steven Forster's Avatar
Steven Forster Steven Forster is offline
Mad Member

Join Date: Apr 2011
Location: Peterlee, County Durham
Posts: 1,770
Send a message via Yahoo to Steven Forster
Default
I noticed it says DTX on the receiver box, so makes me think its a Duratrax.........???

Got myself a Losi XXX-NT 1/10th nitro stadium truck aswell, stripped it down to clean it up and buy a few new parts to get it going again but just havnt got around to building it back up again.............

Reply With Quote
  #9
Old 03-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default
Quote:
Originally Posted by dexter24 View Post
I noticed it says DTX on the receiver box, so makes me think its a Duratrax.........???

Got myself a Losi XXX-NT 1/10th nitro stadium truck aswell, stripped it down to clean it up and buy a few new parts to get it going again but just havnt got around to building it back up again.............
You are correct, it is a duratrax. yea i need to find a few items myself including a body!
Reply With Quote
  #10
Old 04-07-2011
lordnikon lordnikon is offline
Senior Member

Join Date: Apr 2011
Posts: 470
Default
The blue thing on the exhaust is meant to go on the intake for the engine, the filter than sits in the other end
Reply With Quote
  #11
Old 04-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default
Quote:
Originally Posted by lordnikon View Post
The blue thing on the exhaust is meant to go on the intake for the engine, the filter than sits in the other end
__________________
DuraTrax Nitro Evader ST - Under Construction
Team Assoicated B4.1 Brushed
!!!STILL LOOKING FOR A CHARGER AND BATT COMBO!!!
"Assumption is the mother of all f*** up's!"
"Invisible soles leave .308 holes"
Reply With Quote
  #12
Old 04-07-2011
rcjunky's Avatar
rcjunky rcjunky is offline
Senior Member

Join Date: Dec 2009
Location: Ottawa, Ontario, Canada
Posts: 401
Default
you have it in the right spot, its meant to redirect the exhaust flow past the body. it would have a spot for a zip tie on both ends, not just 1 end if it was for an air filter
Reply With Quote
  #13
Old 05-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default
Quote:
Originally Posted by rcjunky View Post
you have it in the right spot, its meant to redirect the exhaust flow past the body. it would have a spot for a zip tie on both ends, not just 1 end if it was for an air filter
__________________
DuraTrax Nitro Evader ST - Under Construction
Team Assoicated B4.1 Brushed
!!!STILL LOOKING FOR A CHARGER AND BATT COMBO!!!
"Assumption is the mother of all f*** up's!"
"Invisible soles leave .308 holes"
Reply With Quote
  #14
Old 05-07-2011
Dazzler's Avatar
Dazzler Dazzler is offline
Senior Member

Join Date: Nov 2008
Location: Telford
Posts: 902
Default
Did you check your pm's? Were the links to the manuals etc useful?
Reply With Quote
  #15
Old 05-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default
Quote:
Originally Posted by Dazzler View Post
Did you check your pm's? Were the links to the manuals etc useful?
Yes I am checked my PM's and THANKYOU very much! they will come in handy!
__________________
DuraTrax Nitro Evader ST - Under Construction
Team Assoicated B4.1 Brushed
!!!STILL LOOKING FOR A CHARGER AND BATT COMBO!!!
"Assumption is the mother of all f*** up's!"
"Invisible soles leave .308 holes"
Reply With Quote
  #16
Old 05-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default

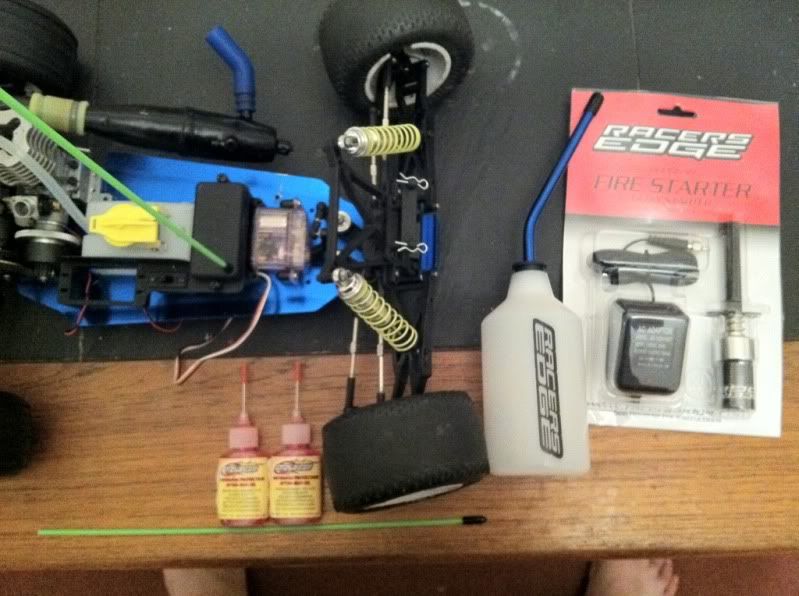

Just got an order from www.racers-edge.com I ordered a neon green antenna protector, nitro starter pack and some extra after engine run oil!


Now all I need is a pull starter, some new servos and some gas and should be good for a quick test run

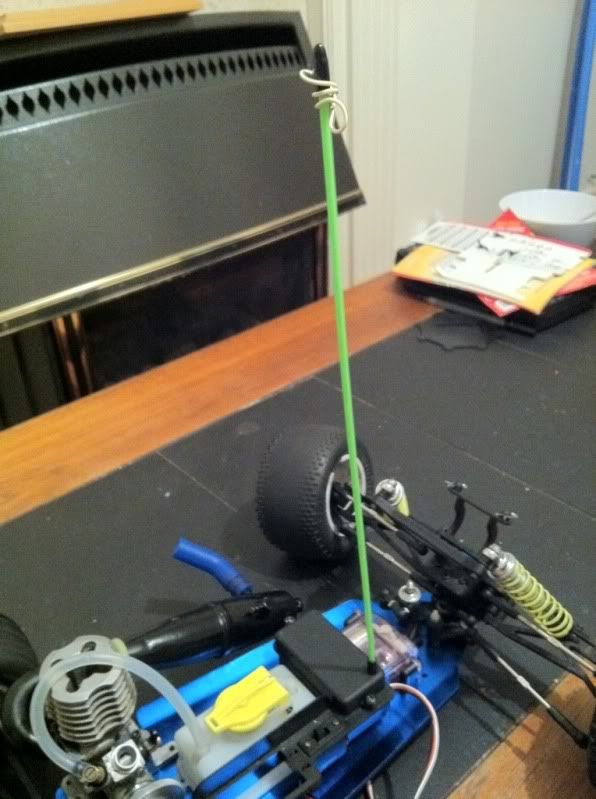

mmm thats looking sexy lol


BTW racers edge ships really fast!
__________________
DuraTrax Nitro Evader ST - Under Construction
Team Assoicated B4.1 Brushed
!!!STILL LOOKING FOR A CHARGER AND BATT COMBO!!!
"Assumption is the mother of all f*** up's!"
"Invisible soles leave .308 holes"
Reply With Quote
  #17
Old 05-07-2011
Therepairman's Avatar
Therepairman Therepairman is offline
Member

Join Date: Jun 2011
Location: Huntingdon, UK
Posts: 61
Send a message via Skype™ to Therepairman
Default
Getting some more parts thanks to member of another forum! Ill post up more when they arrive and maybe a video of it running!
__________________
DuraTrax Nitro Evader ST - Under Construction
Team Assoicated B4.1 Brushed
!!!STILL LOOKING FOR A CHARGER AND BATT COMBO!!!
"Assumption is the mother of all f*** up's!"
"Invisible soles leave .308 holes"
Reply With Quote
